Choosing The Right Diamond Tools for Your Machining Needs

When it comes to precision machining, using the right tools can significantly impact the quality, efficiency, and cost-effectiveness of your work. Among the most popular and effective tools in the industry are diamond tools, known for their exceptional hardness, durability, and precision. Whether you are working with hard metals, ceramics, composites, or other tough materials, diamond tools offer unparalleled performance.

However, with a wide range of diamond tools available, choosing the right one for your specific machining needs can be a daunting task. The wrong choice can result in decreased efficiency, higher costs, and inferior results. This comprehensive guide will help you understand how to choose the right diamond tools for your machining applications and provide tips for optimizing their performance.

Why Choose Diamond Tools for Machining?

Diamond tools are revered in the machining world for their exceptional qualities. The most prominent reasons for their use include:

• Hardness: Diamond is the hardest naturally occurring material on Earth. This extreme hardness allows diamond tools to cut, grind, or polish materials that would quickly wear out traditional tools, such as steel, ceramics, glass, and composite materials.

• Longevity: Because of the hardness of diamond, these tools can last significantly longer than conventional cutting tools. They require less frequent replacement, reducing downtime and maintenance costs.

• Precision: Diamond tools offer high precision, which is essential when machining intricate parts, especially in industries such as aerospace, automotive, and medical devices.

• Clean Cuts: Diamond tools produce cleaner cuts, which reduces the need for further finishing operations. This is especially important in applications where surface finish is critical.

Now that we’ve established why diamond tools are so beneficial, let’s dive into how to choose the right diamond tools for your specific machining needs.

Types of Diamond Tools and Their Applications

There are several different types of diamond tools, each suited for specific machining tasks. Understanding the key types and their applications will help you make an informed decision.

1. Diamond Cutting Tools

Diamond cutting tools are primarily used for cutting hard materials like metals, ceramics, and composites. These tools are often used in turning, milling, and grinding operations.

• Applications: These tools are commonly used in industries like aerospace, automotive, electronics, and medical device manufacturing, where high precision and a flawless finish are essential.

• Types: Some common types of diamond cutting tools include diamond saw blades, turning inserts, and milling cutters.

When choosing a diamond cutting tool, consider factors such as:

• Material hardness: The material you are working with will determine the diamond tool’s type and bonding. For example, polycrystalline diamond (PCD) tools are ideal for non-ferrous materials like aluminum, while single crystal diamond (SCD) tools are better for ultra-hard materials like ceramics and carbide.

2. Diamond Grinding Tools

Diamond grinding tools are used to smooth, grind, or polish hard materials. They are commonly used in finishing processes to achieve tight tolerances and superior surface finishes.

• Applications: These tools are widely used for grinding metallic alloys, brake discs, cylindrical shafts, and high-precision parts.

• Types: Common types include diamond grinding wheels, diamond belts, and diamond cup wheels.

When selecting a diamond grinding tool, consider:

• Grain size: The grain size determines the smoothness of the finish. Coarser grits are used for rough grinding, while finer grits are better for polishing or finishing.

• Bonding type: The bond holds the diamond particles in place. Different bonding types (e.g., resin, metal, or vitrified bonds) are suitable for different grinding conditions. Resin bonds are ideal for softer materials, while metal bonds are more effective for hard materials.

3. Diamond Drills

Diamond drills are primarily used for drilling hard materials, including stones, glass, ceramics, and composite materials. These tools are essential for creating accurate holes in tough materials that would otherwise dull regular drills.

• Applications: Commonly used in construction, mining, and stone cutting industries, diamond drills are indispensable for applications requiring precise, clean holes, such as when drilling for anchors, pipes, or fittings in hard surfaces.

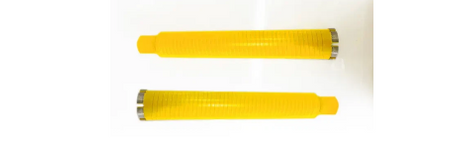

• Types: Diamond core drills, rotary diamond drills, and diamond twist drills are all used for various drilling applications.

Consider these factors when selecting a diamond drill:

• Core material: Select the appropriate diamond drill for the specific material you’re drilling. For example, a wet-core drill may be needed for materials that generate heat during drilling, while a dry-core drill may work better for materials that need to remain cool.

• Diameter and depth: The size of the hole and the depth you need to achieve will help determine the type and size of the drill bit.

4. Polishing and Lapping Tools

Polishing and lapping are processes used to achieve ultra-smooth finishes and precise dimensional accuracy. These tools are critical in industries where parts must have a mirror-like finish, such as jewelry, optics, and aerospace.

• Applications: Diamond lapping films, polishing pads, and lapping plates are common diamond polishing tools.

When choosing diamond polishing and lapping tools:

• Application material: Make sure to select a tool with the appropriate abrasive grit size to match the material being polished. For glass or ceramic, finer grits will be needed for a smooth, shiny finish.

• Pressure and speed: The pressure applied during the lapping process and the speed at which the polishing tool is operated will determine the effectiveness of the finish. High pressure can lead to faster material removal but may affect the surface integrity.

Factors to Consider When Choosing Diamond Tools

When selecting diamond tools for your machining needs, there are several key factors to consider to ensure you choose the right tool for the job:

1. Material to Be Machined

The material you're working with will directly influence your choice of diamond tool. Some materials, like steel or titanium, require harder diamond tools, such as single crystal diamonds or PCD tools, while softer materials like aluminum or copper may require tools with a different bonding structure.

2. Application Type

The type of machining operation (e.g., cutting, grinding, drilling, or polishing) will determine the right diamond tool. For cutting and drilling, you may need diamond saw blades or core drills, while for grinding and polishing, a diamond grinding wheel or polishing pad may be more appropriate.

3. Tool Life and Durability

Diamond tools are highly durable, but they can wear down over time depending on the material and application. When selecting a tool, consider the abrasive wear of the material you are working with, and select a tool that will offer the best longevity based on your needs.

4. Precision Requirements

Different applications require different levels of precision. For high-precision tasks, such as in medical device manufacturing or optical components, tools with finer diamond grits and specialized bonding will ensure the highest levels of accuracy.

5. Cost and Investment

Diamond tools tend to be more expensive than traditional tools, but their longevity and performance often justify the investment. When selecting diamond tools, balance the initial cost with the long-term cost savings due to reduced downtime, longer tool life, and increased machining efficiency.

Conclusion

Choosing the right diamond tools for your machining needs is essential to ensuring that your operations run smoothly, efficiently, and cost-effectively. Whether you are cutting, grinding, drilling, or polishing, diamond tools offer unmatched precision, durability, and performance. By understanding your material, application, and precision requirements, you can make an informed decision and select the right tools for your specific needs.

At Huazuan Diamond Tools Co., Ltd., we offer a wide range of high-quality diamond tools designed to meet the most demanding machining applications. Our products are engineered for precision and long-lasting performance, ensuring that your projects are completed with the highest level of efficiency and quality. Contact us today to learn more about how our diamond tools can enhance your machining operations.

FAQ

Q: What are the different types of diamond tools used in machining?
A: Diamond tools include diamond saw blades, diamond grinding wheels, diamond drills, and polishing tools, each designed for specific tasks such as cutting, grinding, drilling, or finishing.

Q: How do I choose the right diamond tool for my application?
A: The right tool depends on the material you are machining, the type of application, and the precision required. For example, PCD tools are ideal for hard metals, while diamond grinding wheels are suitable for achieving smooth finishes on hard materials.

Q: Are diamond tools suitable for all materials?
A: Diamond tools are ideal for hard materials like steel, ceramics, composites, and glass. They are not typically used for softer materials like wood or plastics, which do not require the hardness of diamonds.

Q: How long do diamond tools last?
A: Diamond tools have a longer lifespan compared to traditional tools due to their hardness and durability. However, the lifespan depends on the material being worked on and the specific application. Regular maintenance and proper use can significantly extend the life of diamond tools.
