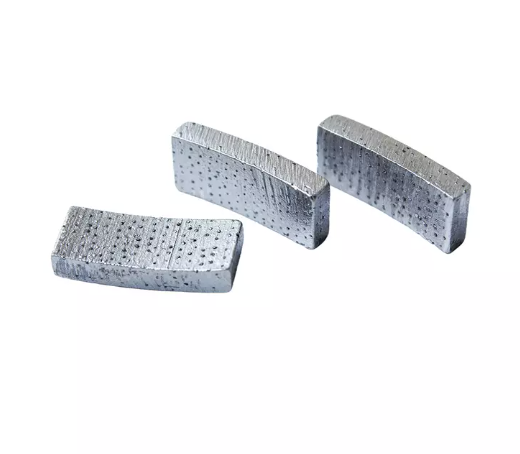

Diamond segments are the key components of cutting tools like saw blades and grinding wheels. These small but crucial elements are responsible for precision cutting across industries such as construction, mining, and manufacturing.
In this article, you'll learn why mastering the process of making diamond segments is essential for creating high-performance cutting tools. We'll guide you through the production process and show how customization can improve cutting efficiency for various applications.
What are Diamond Segments Made Of?
Diamond segments combine diamond grit and metal powder. These two work together: diamonds do the cutting, metals hold everything tight. We use iron, cobalt, copper, or tungsten-based powders depending on the application. Natural and synthetic diamonds both work, but synthetics offer better consistency. Some formulas also include additives like carbides or oxides—they help the bond last longer under stress.
How to Choose the Right Diamond Particles and Bonding Material?
Pick the diamond grade, size, and concentration carefully. Fine diamonds cut smoother, coarse ones cut faster. High diamond concentration means longer life, but lower sharpness. Choose a soft bond for hard materials and a hard bond for soft ones. If you're cutting granite, you’ll need a stronger matrix than if you’re cutting marble.
How Do You Mix the Diamond Particles and Metal Powder?
We start by weighing the right amounts of diamond and metal powders. Then, they go into a ball mill or mixer. Mixing lasts around 1–2 hours—too short, and it’s uneven; too long, and oxidation may occur. For easier pressing later, we often granulate the powder using mechanical or spray granulation methods.
What Happens During the Mixing Stage?
You want every diamond to be surrounded by metal. That’s the goal. Uneven mixes cause weak spots, affecting performance. A good mix looks uniform, flows well, and feels smooth when handled.
What is Cold Pressing in Diamond Segment Production?
Cold pressing compresses the powder into a solid shape at room temperature. We use molds to shape the segments—bar, arrow, button, you name it. For multi-layered segments, we press side, middle, and transition layers separately. Side layers cut, middle ones balance, and transition ones add stability.
How Does Hot Pressing Affect Diamond Segments?
Next, we apply high heat and pressure to fuse the layers. It’s called hot pressing. This step is vital: it strengthens the bond, densifies the segment, and locks diamonds in place. Pressure and temperature settings vary based on the materials—but they must be exact to ensure quality.
What is Sintering, and Why Is It Crucial for Diamond Segments?
Sintering heats the pressed powders until they fuse without melting. We use vacuum or hydrogen-protected furnaces. Inside, the metal powders bind to each other and the diamonds. The heat must rise slowly and evenly.
How Does Sintering Influence the Hardness and Durability of the Diamond Segment?
Good sintering removes trapped gases and keeps the bond dense. That means fewer cracks and stronger cutting segments. A wrong temperature curve? It ruins the whole batch.
What Happens After Sintering?
After sintering, segments look rough. We cool them, then blast them with sand to clean off burrs. Grinding comes next—it shapes the segment and trims excess edges.
How Are Diamond Segments Inspected and Tested?
We check for cracks, weight mismatch, and wrong dimensions. Sometimes we test hardness, too. A segment that’s too soft or brittle won’t last long in real use.

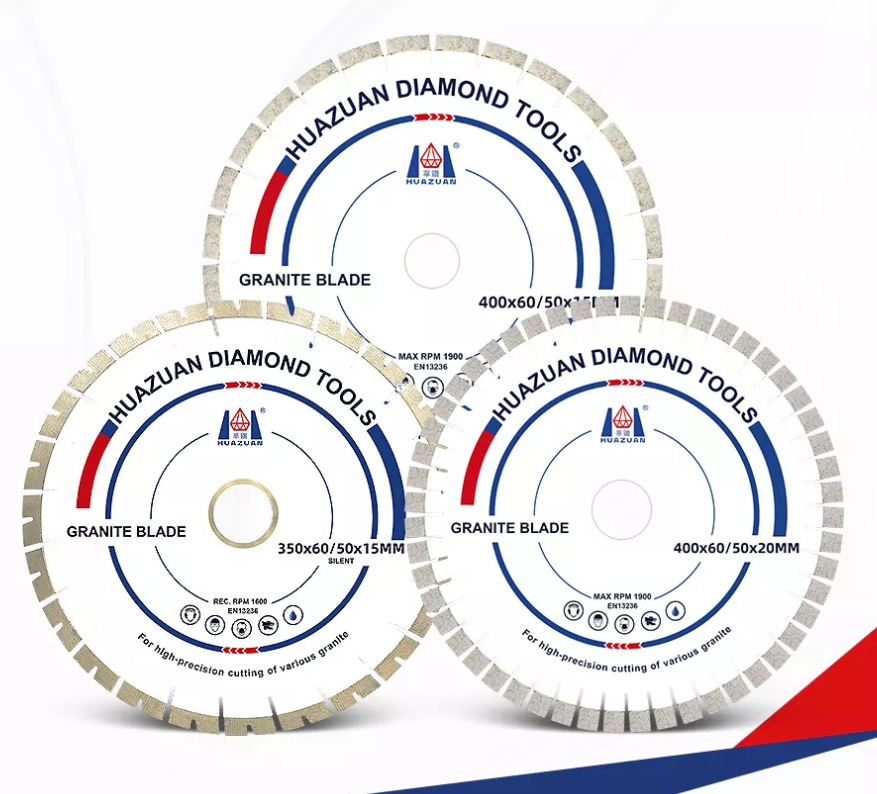

How Are Diamond Segments Attached to Saw Blades?
We weld the segments to a steel blade core using laser welding, vacuum brazing, or sintering. Each method ensures the segments stay in place under high-speed cutting. No wobble. No slippage.
How Are Diamond Segments Packaged for Shipping?
Each segment is packed to avoid scratches or dents. We use foam inserts, plastic trays, or vacuum packs. Labels show the model, size, and date—so users know exactly what they're getting.
How Does Diamond Particle Size Impact Cutting Efficiency?
Larger diamond particles generally cut faster because they have a greater surface area for material removal. However, they may not provide as smooth of a cut. Finer diamonds produce smoother cuts, but they wear out faster and might need more pressure to cut effectively.
What Is the Optimal Diamond Concentration for Different Applications?
Higher diamond concentration improves durability and cutting efficiency but may reduce sharpness, leading to slower cuts. Lower concentrations are great for fast cuts but wear out quickly. For tough materials like granite, a high concentration is needed. Softer materials, like marble, perform better with lower concentrations.
What Role Do Metal Bonds Play in Diamond Segment Durability?
Metal bonds, such as copper, cobalt, and tungsten, hold the diamonds in place. The right balance of hardness and toughness in the bond ensures that the segment wears evenly without losing diamonds prematurely. Copper is great for softer materials, while cobalt and tungsten are better for tougher rocks.
How Does Sintering Temperature Affect Diamond Segment Performance?
Sintering at the correct temperature is crucial. If it's too low, the bond might not form properly, leading to weak segments. High temperatures increase bond density and strength, but if the temperature is too high, it can overheat the diamonds, affecting their cutting ability. The right temperature ensures the strongest bond and optimal performance.
How Do You Choose the Right Diamond Segments for Different Materials?
The key is matching the segment's material to the cutting surface. For tough materials like granite, use a strong metal bond with high diamond concentration. Softer materials like asphalt need segments with coarser diamond particles and a softer bond. Wet cutting requires a segment with better water flow properties to reduce overheating.
What Are Common Problems with Diamond Segments?
Several issues can affect diamond segments, such as low cutting efficiency, excessive wear, and segment breakage. These problems often arise from incorrect diamond concentration or an unsuitable metal bond. To prevent these issues, adjust the formula based on the material being cut. Ensure proper sintering conditions to avoid underperformance.
Can Diamond Segments Be Tailored for Specialized Applications?
Yes, diamond segmentscan be customized to suit a wide range of applications. For high-speed cutting, you need segments with a fine diamond concentration and a strong bond to maintain cutting precision. For harder materials, such as granite or reinforced concrete, a tougher bond and larger diamonds are necessary to withstand the wear. The key is selecting the right balance between diamond size, concentration, and the bonding material to achieve optimal performance for each specific task.
What Are the Latest Advances in Diamond Segment Manufacturing?
Manufacturers are constantly improving diamond segment production with new materials and techniques. One of the most notable advancements is the use of nanotechnology, which allows for finer control over the size and distribution of diamond particles. This leads to better cutting efficiency and longer-lasting segments. Additionally, advanced sintering methods are now used to create stronger bonds and improve segment durability, even under extreme conditions. These innovations help produce diamond segments that perform better and last longer, even in the toughest environments.
Making diamond segments involves preparing raw materials, mixing, pressing, sintering, and post-processing. Understanding each step improves segment performance. High-quality segments lead to better efficiency, lower costs, and longer-lasting tools. Experimenting with formulas and materials can help tailor segments to specific cutting needs for optimal results.
A: Diamond segments are made from diamond particles bonded with metal powders like copper, cobalt, or tungsten, forming a durable composite.
A: Select segments based on the material's hardness. For harder materials, use tougher bonds and larger diamonds; for softer ones, use finer diamonds and softer bonds.
A: Sintering bonds diamond particles and metal powders at high temperature, improving strength and durability, crucial for segment performance.
A: Yes, diamond segments can be tailored by adjusting the diamond size, concentration, and bond material to suit different cutting speeds and materials.
