How To Choose A Concrete Core Bit for Reinforced Concrete

Drilling through structural materials presents severe site challenges. It is fundamentally different from standard masonry work. Striking high-tensile steel rebar introduces rapid heat buildup. This extreme friction risks catastrophic segment failure. It frequently stalls critical project timelines. Operators often face serious procurement problems when sourcing job-site consumables. Selecting the wrong concrete core bit directly results in glazed diamonds. You will experience snapped barrels and inflated cost-per-hole metrics. No project manager can afford unexpected equipment downtime on a tight schedule. This article provides a comprehensive technical evaluation framework. We help you specify the correct tool for your exact application. You will learn to evaluate aggregate hardness, steel reinforcement density, and drill rig capabilities. By understanding these variables, you can easily optimize your drilling strategy. We guide you to protect your expensive equipment investments immediately.

Key Takeaways

• Bond Hardness is Counter-Intuitive: Hard materials (like reinforced concrete and steel) require soft-bond core bits to continuously expose fresh cutting diamonds.

• Cooling is Critical: Wet core drilling is the industry standard for reinforced applications due to superior thermal management and slurry evacuation.

• Construction Quality Matters: Laser-welded segments are non-negotiable for heavy rebar applications to prevent segment detachment under torque.

• System Compatibility: A premium bit will underperform if mismatched with the drill rig's RPM, power output, or mounting thread.

The Realities of Reinforced Concrete Drilling

The Aggregate-to-Steel Transition

Drilling structural slabs forces a mechanical compromise upon your tools. A bit must initially grind highly abrasive concrete aggregate. Aggregates range from soft limestone to extremely hard river rock. Suddenly, the bit strikes high-tensile steel rebar. The physical cutting mechanics must change instantly. Stone fractures and crushes under pressure. Conversely, steel shears and peels. The diamond matrix must handle both diverse actions without snagging or binding in the hole. If the segment transitions poorly, the drill rig will shudder violently. This sudden torque transfer fatigues the operator and damages the equipment.

Thermal Dynamics

Steel friction spikes the localized temperature rapidly. When diamond segments grind against heavy rebar, they generate extreme heat. This thermal shock threatens the structural integrity of the entire steel barrel. Temperatures can easily exceed the melting point of standard manufacturing solders. Extreme heat causes the steel tube to expand, warp, or crack under load. It also risks melting the metallic matrix holding the diamond crystals. Proper cooling mitigates this severe risk. You must control the thermal dynamics to maintain continuous cutting speeds.

Cost-per-Hole Metrics

Evaluating bits strictly on upfront purchase price is a fundamentally flawed procurement strategy. Cheap consumables fail quickly on dense heavy rebar. You ultimately purchase three budget bits instead of one premium tool. More importantly, you lose valuable labor hours swapping out ruined tools. You must track core bit lifespan and operator labor time simultaneously. Longer-lasting bits significantly lower the true operational cost per hole. Superior tools require fewer changes, reduce operator fatigue, and keep the project strictly on schedule.

Common Mistakes in Procurement

• Focusing solely on the lowest catalog price rather than segment height and diamond concentration.

• Ignoring the specific aggregate hardness native to the geographic job site.

• Failing to consult drill rig operators about actual cutting speeds and tool wear rates.

Wet Core Drilling vs. Dry Drilling: Evaluating the Approach

Wet Core Drilling (The Standard for Rebar)

Industry professionals rely on water for heavy structural applications. Water acts as both a primary coolant and a critical flushing agent. As the diamonds grind the surface, they create fine concrete dust and steel shavings. Water transforms this abrasive debris into a flowable liquid slurry. The continuous fluid flow evacuates this slurry up the barrel flutes and out of the cut. Wet core drilling prevents the tool from binding inside deep holes.

The business outcome is highly measurable. Liquid cooling significantly extends the effective tool life. It allows for continuous, deeper drilling through heavy reinforcement. Operators do not need to pause repeatedly to let the equipment cool down. This continuous operation maximizes daily productivity.

Dry Drilling Constraints

Dry drilling methods rely entirely on ambient airflow for essential cooling. The mechanics are inherently limited. Without liquid flushing, dust accumulates rapidly inside the annular space. Friction increases exponentially as debris packs around the spinning steel barrel.

These constraints restrict dry applications significantly. They are generally limited to standard brick, hollow block, and lightly reinforced materials. Using dry bits on heavy structural rebar risks rapid catastrophic failure. The extreme heat will melt the segments quickly. Operators must constantly withdraw the tool to clear dust and cool the barrel. This "pecking" motion wastes considerable labor time.

Methodology Comparison Chart

Key Evaluation Criteria for a Concrete Core Bit

Diamond Matrix and Bond Type

Understanding matrix wear rates requires a counter-intuitive approach. The metal matrix holds microscopic diamond crystals in place. Soft bonds wear away quickly during operation. This intentional wear releases dulled diamonds constantly. It continually exposes a brand-new, sharp diamond layer. This rapid exposure is absolutely ideal for hard, reinforced concrete drilling. Conversely, hard bonds hold diamonds tenaciously. They suit soft, highly abrasive materials like fresh asphalt or green concrete.

Your primary decision rule is simple. Always specify a soft-to-medium bond for heavy structural rebar. If you use a hard bond on dense steel, the diamonds dull rapidly. The tough matrix refuses to release them. The tool simply spins in the hole, generating massive heat but zero progress.

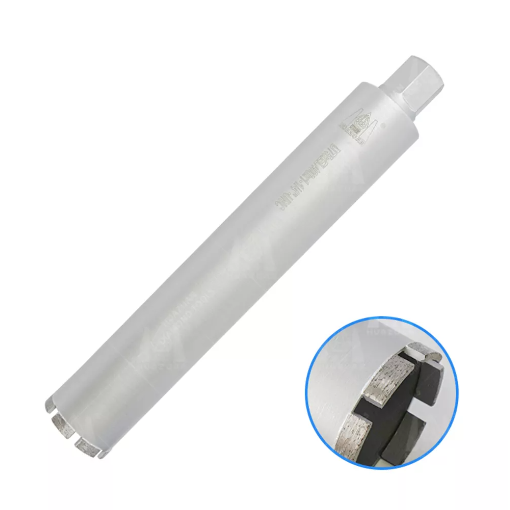

Segment Attachment Method

Manufacturers attach cutting segments to steel barrels using two primary methods. Laser welding utilizes intensely focused heat to fuse the segment directly into the barrel metal. This creates a solid chemical bond. It easily withstands the violent sheer impacts of hitting embedded rebar.

Brazing utilizes a silver alloy acting much like a heavy-duty industrial glue. The heat from heavy torque can soften this brazed joint. Brazed segments risk snapping off completely under heavy rotational stress. Once a segment detaches in the hole, it destroys the remaining attached segments instantly. You must insist on laser-welded construction for heavy commercial applications.

Segment Design and Geometry

Segment geometry dictates cutting speed and necessary surface pressure. Turbo segments feature heavily serrated or roof-top designs. They offer significantly faster starting speeds. They have lower overall surface contact against the material. This geometry drastically reduces side friction in deep, heavily reinforced holes.

Flat or standard solid segments provide more diamond volume. They deliver longer overall operational life. However, they require more operator skill and control to start the initial cut without wandering. Choose turbo designs for speed and flat designs for pure longevity.

Barrel Length and Core Depth

Standard industrial lengths typically range from 14 to 18 inches. You must match the barrel length to your structural specifications. Deep-wall applications often require specialized modifications.

How to Evaluate Required Core Depth

1. Measure the total precise thickness of the structural wall or foundation slab.

2. Subtract the functional cutting depth of your standard selected barrel.

3. Calculate the required length of a threaded steel extension rod.

4. Monitor the assembled drill string carefully for runout or excessive wobble before cutting.

Maximizing Core Bit Lifespan and Operational ROI

RPM Matching

Operators must understand the strict inverse relationship between tool diameter and spindle RPM. Small diameters require highly elevated RPM to cut efficiently. Large diameters require severely reduced RPM to maintain proper surface speeds. If you run a massive 10-inch barrel at 1200 RPM, you will burn the segments instantly. The outside edge travels much too fast.

Conversely, running a 2-inch tool at 300 RPM produces no cutting action. The diamonds will barely scratch the dense surface. Incorrect RPM settings either glaze the diamonds flat or overheat the entire steel assembly. Always consult the specific manufacturer data plate for optimal rotational speeds.

Feed Pressure Dynamics

Experienced operators follow the "let the tool do the work" principle strictly. You must apply smooth, consistent downward pressure. Forcing the rig violently into heavy rebar bends the steel barrel permanently. Excessive manual pressure also polishes the diamond crystals flat against the steel.

Listen closely to the drill motor. A steady, even hum indicates perfect feed pressure. If the motor pitches down heavily or groans, you are pushing far too hard. Back off the carriage wheel slightly. Allow the diamonds to grind the steel at their natural engineered pace.

Dressing a Glazed Bit

Even perfect operators occasionally glaze a tool. You must know how to recognize and fix this common issue. You will notice a sudden, drastic loss of cutting speed. The water returning from the hole will run clear instead of milky. You might even see sparks flying from wet cuts.

You must "dress" the tool to restore its cutting ability. Remove the rig from the primary hole. Drill briefly into a highly abrasive, soft material. An old cinder block or a specialized dressing stone works perfectly. The coarse silica sand acts as a heavy grinding agent. It strips away the top layer of the metal matrix. Fresh, sharp diamonds emerge rapidly. You can then return to the structural cut with a fully restored tool.

Shortlisting Logic: Matching the Bit to Your Drill Rig

Handheld vs. Rig-Mounted Constraints

System compatibility determines job site safety and actual performance. Handheld drills demand strict physical limits. You should generally limit handheld operations to tools under 3 to 4 inches in diameter. Larger sizes generate massive, uncontrollable torque. If a 6-inch tool binds in heavy rebar, it will wrench the drill violently. This causes severe wrist injuries.

Larger diameters require heavily anchored core drill stands. You bolt or vacuum-mount the stand directly to the slab. This rigid stabilization prevents dangerous kickback. It also guarantees a perfectly plumb hole without ovaling the concrete.

Spindle Thread Compatibility

You must ensure the tool physically matches the motor arbor before purchasing. Industry standards dictate specific threading based on tool size and application.

• 1 1/4"-7 UNC Threads: These are the standard for large, rig-mounted applications. They handle massive torque loads safely.

• 5/8"-11 Threads: These fit smaller handheld applications. They are designed for quick changes and lighter torque environments.

Using improper thread adapters introduces unnecessary wobble into the drill string. Always buy tools natively threaded for your specific motor spindle.

Motor Power

Cross-reference the drill motor’s listed amperage or wattage with the tool diameter's strict requirements. Pushing a massive tool with an underpowered motor guarantees failure. A standard 15-amp electric motor will inevitably stall in dense structural rebar. It simply lacks the rotational force to sheer the steel.

Heavy commercial applications require 20-amp electric motors or dedicated hydraulic rigs. High torque keeps the spindle turning smoothly through complex composite materials. Matching power to diameter prevents motor burnout and saves expensive equipment replacements.

Conclusion

Sourcing the right industrial cutting tool requires balancing several critical engineering factors. You must balance diamond bond softness against laser-welded structural durability. Incorporating proper wet-drilling capabilities ensures you manage dangerous thermal dynamics effectively. A mismatched tool destroys your productivity and wastes valuable labor hours.

We highly recommend a thorough site audit before issuing any purchase order for consumables. Audit your standard job-site aggregate hardness directly. Assess the expected rebar frequency in your upcoming projects. Finally, review your current drill rig specifications, focusing on thread size and motor power. Taking these deliberate steps ensures you maximize tool life and maintain highly profitable cost-per-hole metrics.

FAQ

Q: Can you drill through heavy rebar with a dry core bit?

A: It is technically possible with specialized dry bits, but highly inefficient and costly. Dry tools rely entirely on ambient airflow. Without liquid cooling, heavy steel friction generates massive heat, risking rapid segment failure. Wet drilling is strongly recommended for structural rebar to manage thermal loads safely.

Q: Why is my concrete core bit cutting so slowly?

A: The diamonds are likely "glazed" (polished flat) due to using a hard-bond bit on hard material, using an RPM that is too high, or applying insufficient feed pressure. You must briefly drill into an abrasive material like a cinder block to strip the matrix and expose fresh diamonds.

Q: How do I determine the right RPM for my concrete core bit?

A: Check the manufacturer's spec sheet based on the bit's exact diameter. Generally, larger diameters require much lower speeds to maintain optimal surface feet per minute (SFPM). Running a large tool at high speeds will quickly burn out the cutting segments and damage the barrel.
