Reinforced concrete is one of the most common materials cut by a diamond wire saw. It appears in bridges, walls, columns, beams, foundations, slabs, basements, tunnels, and demolition blocks. The main challenge is not only the concrete itself. Rebar, mesh, and embedded steel can change the cutting load during the job.
A diamond wire saw is useful here because it can cut concrete and reinforcement in one continuous path. This helps when a contractor needs to remove a large section without heavy impact, strong vibration, or uncontrolled cracking. It is also helpful for renovation work where nearby structures must stay stable.
For reinforced concrete, operators usually need strong wire tension, steady cooling, and a wire designed for abrasive concrete and steel contact. If the section is thick, the cut may take longer, but the process can still stay controlled.
Natural stone is another major cutting area. Granite, marble, limestone, sandstone, and other stones can be cut by diamond wire. In quarrying and stone processing, wire cutting helps shape large blocks, square stone, trim slabs, and prepare material for further processing.
Granite is hard and abrasive, so it needs durable diamond beads and stable machine power. Marble is softer, but it may chip if feed control is poor. Limestone and sandstone are easier to cut in many cases, yet they still need a steady cutting path to avoid edge damage or uneven surfaces.
The main benefit is low material waste. A thin wire removes less material than many large cutting tools. This matters when the stone is expensive, when the block must keep a high yield, or when the buyer needs a smooth surface for later polishing.
A diamond wire saw can cut metals, including steel, aluminum, copper, and mixed metal sections. It is also used when metal appears inside another material, such as rebar in concrete or metal inserts in industrial parts.
Metal cutting needs more planning than stone cutting. Dense steel can create high heat, slower cutting speed, and faster wire wear. Aluminum and copper may behave differently because they are softer and can load the cutting surface if cooling and debris removal are poor.
For metal cutting, wire selection is critical. The setup should use enough coolant, a suitable bead bond, and controlled feed pressure. Forcing the wire does not usually improve results. It may reduce wire life and increase the risk of breakage.
Glass can be cut by diamond wire when precision and low breakage are important. It may include flat glass, thick glass blocks, optical glass, or specialty glass parts. The main risks are cracks, edge chipping, thermal stress, and surface flaws.
Diamond wire cutting helps because it uses abrasion and lower vibration. It does not strike the glass like impact tools. However, glass still needs stable support, smooth tension, and careful coolant control. A small movement during cutting can cause cracks.
This method is most suitable when the material is thick, fragile, or valuable enough to justify a controlled process. For simple straight cuts on thin glass, another method may be faster.
Ceramics, porcelain, quartz, and sapphire are hard and brittle. They can resist normal cutting tools and may crack under high force. A diamond wire saw can cut these materials because diamond abrasives grind the surface gradually.
Ceramic cutting often focuses on clean edges and controlled breakage. Porcelain and quartz need similar care. Sapphire is extremely hard, so cutting speed may be slower, and the wire must match the material. These materials often need enough coolant to control heat and remove fine particles.
The goal is not only to finish the cut. The goal is to keep the part usable after cutting. Edge quality, surface damage, and material yield matter as much as speed.
Composite materials include carbon fiber, fiberglass, and resin-based parts. A diamond wire saw can cut them when clean edges and low delamination are needed. These materials appear in aerospace, automotive, marine, energy, and industrial parts.
The challenge is their layered structure. Fibers may fray, resin may heat up, and layers may separate if the feed is too aggressive. A steady wire path helps reduce pulling and tearing.
For composites, heat control is very important. Too much heat may soften resin or damage the surface. Operators should use controlled speed, proper support, and a cutting process tested on similar material.
A diamond wire saw is also used for precision materials such as silicon, graphite, and some semiconductor-related substrates. Silicon cutting often requires a thin kerf, stable slicing, and high yield. Graphite is easier to cut than silicon in some ways, but its dust and brittleness still need control.
For these materials, precision matters more than raw speed. A thin diamond wire can reduce material loss, which is important when the material is costly or when many slices are needed. Good coolant or slurry control also helps improve surface quality.
Material group | Common examples | Main cutting concern | Why diamond wire saw helps |
Reinforced concrete | Walls, beams, slabs, bridges | Rebar, vibration, thick sections | Cuts concrete and steel together |
Natural stone | Granite, marble, limestone | Waste, chipping, block size | Thin kerf and smooth cutting |
Metals | Steel, aluminum, copper | Heat and wire wear | Controlled abrasive cutting |
Glass and ceramics | Glass, quartz, porcelain | Cracks and edge chips | Low vibration cutting |
Precision materials | Silicon, sapphire, graphite | Yield and surface damage | Thin kerf and stable slicing |
Composites | Carbon fiber, fiberglass | Delamination and heat | Less tearing when set correctly |
A diamond wire saw does not cut like a toothed blade. It uses diamond particles to grind the material surface. This is why it can work on hard materials such as stone, ceramics, quartz, sapphire, and reinforced concrete.
The wire removes material little by little. This helps reduce sudden stress. It also makes the method useful for brittle materials, where cracking is a major risk.
The flexible wire can wrap around columns, blocks, pipes, stone sections, or large concrete structures. It can also be guided through a prepared opening. This gives more freedom than many circular blades.
For thick sections, the cutting depth depends more on wire length and machine setup than blade diameter. That is why wire sawing is often selected for oversized workpieces.
Water or coolant reduces friction, washes away slurry, and helps protect the diamond beads. It is especially important for concrete, metal, glass, ceramics, and thick stone.
Poor cooling can cause overheating, glazing, surface damage, and shorter wire life. It can also slow the cut because debris stays in the cutting zone.
Note：Before cutting hard or brittle materials, check cooling flow first. Many cutting problems start from heat, not from machine power.
Diamond wire cutting is best suited for materials that are too thick, hard, or reinforced for normal blades. Large concrete sections, bridge piers, stone blocks, steel-reinforced structures, and heavy industrial parts are good examples.
The method is also useful when the cut must be deep. A circular blade has a fixed diameter. A wire loop can be arranged for much larger sections.
Stone slabs, quartz, silicon, sapphire, glass, ceramics, and composites may have high material value. In these cases, cutting waste affects cost. A thin wire can help keep more usable material.
It can also reduce the need for heavy secondary processing. A cleaner cut may save time in grinding, shaping, or polishing.
Some jobs do not allow easy tool access. A structure may be underwater, inside a tight space, or close to finished surfaces. A wire saw can be guided by pulleys, so it can cut where rigid tools struggle.
This helps in controlled demolition, renovation, and special industrial cutting. It also allows angled or shaped cuts when the setup is planned well.
Tip：Use diamond wire cutting when the workpiece is large, valuable, fragile, or difficult to reach. It often solves problems that blade cutting cannot handle well.
Heavy steel can be cut, but it may increase cutting time and wire wear. The operator should avoid too much feed pressure. Strong cooling and the right wire type matter more than force.
If the job includes both concrete and steel, the wire must handle changing resistance. Otherwise, the cut may become unstable when it reaches reinforcement.
Glass, ceramics, quartz, sapphire, and some stones need steady support. They may break from vibration, bending, or heat stress. Even a small unsupported area can cause cracks near the cut.
For these materials, the setup should hold the workpiece firmly. The feed rate should stay smooth. Cooling should be enough to keep the cut zone clean.
Mixed materials include reinforced concrete, coated metal, laminated parts, or composite-metal assemblies. Each layer may cut differently. This can change wire load and cutting speed during the same cut.
Heat-sensitive materials, such as resin composites, plastics, rubber-like materials, and laminated panels, need caution. Too much heat can cause melting, deformation, burning, or delamination.
Note：For expensive or unfamiliar materials, run a sample cut before full production. It can reveal edge quality, wire wear, and real cutting speed.
Different materials need different wire designs. Stone cutting may need wear-resistant sintered beads. Concrete cutting may need a wire structure that handles reinforcement and vibration. Metal cutting may need a bond and bead design suited for high heat and dense material.
Important factors include diamond grit, bead bond, wire diameter, coating, bead spacing, and cable strength. A flexible wire may suit complex shapes. A stronger wire may suit heavy-load cutting.
Harder materials usually need a controlled feed rate. Softer materials may cut faster, but speed alone is not the goal. If the wire is forced, it may wear quickly, slip, or break.
The best feed rate keeps the wire cutting smoothly. It should not create heavy vibration or heat. For brittle materials, slower and steadier cutting often gives better edge quality.
Cooling is not only for temperature control. It also removes dust, stone powder, concrete slurry, glass particles, and metal debris. Clean cutting contact helps the diamonds stay exposed.
If slurry stays in the cut, performance can drop. The wire may polish instead of cut. This increases heat and reduces efficiency.
Stone blocks, glass, ceramics, and thin precision materials need stable support. Large concrete and metal sections may need lifting points, braces, or staged removal. Without support, the material may shift near the end of the cut.
A good support plan also improves safety. It prevents sudden movement and protects the finished edge.

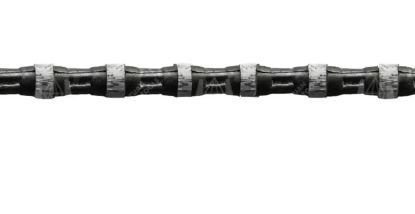

Huazuan Diamond Tools provides diamond wire saw products for stone, concrete, and metal cutting applications. Its product range includes diamond wire for granite, marble, reinforced concrete, and metal cutting, along with related diamond tools for cutting, drilling, grinding, polishing, and stone processing. This allows users to match the cutting tool to the material instead of using one wire for every job.
For stone processing, Huazuan offers diamond wire designed for quarrying, squaring, chamfering, and slab preparation. Features such as sintered diamond beads, protective coating, and high-tensile steel wire help support clean cutting, stable operation, and longer service life. For concrete cutting, its wire options are built for demanding demolition, repair, and construction work, including reinforced concrete structures.
The company also supports custom requirements. Users can discuss wire diameter, bead specification, coating method, cutting material, and expected surface quality. This is useful when cutting special stone, thick concrete, mixed material, or parts that need lower waste. Technical support can also help with wire selection, cutting parameter guidance, cooling advice, and operation troubleshooting.
A diamond wire saw can cut concrete, stone, metal, glass, ceramics, quartz, sapphire, graphite, composites, and silicon. Still, each material needs the right setup. Wire type, cooling, speed, support, and machine power all affect the result. For hard, thick, brittle, or valuable materials, it offers a clean and controlled cutting choice.
A: A diamond wire saw can cut concrete, stone, metal, glass, ceramics, composites, silicon, quartz, sapphire, and graphite.
A: Yes. A diamond wire saw can cut concrete and embedded rebar in one continuous operation.
A: It gives lower vibration and better control, helping reduce cracks and edge chips.
A: Cost depends on material, thickness, wire type, machine setup, and cutting time.
A: Wire saws suit thick, large, fragile, or complex materials better than many blades.
