A diamond core bit operates as a highly specialized cylindrical cutting tool. Professionals use it extensively to extract solid material cylinders. These tools dominate professional construction, commercial plumbing, and complex electrical installations. Standard drill bits typically rely on sheer brute force. They feature sharp steel edges. These edges dull rapidly when pushed against abrasive surfaces or steel-embedded structures. Such brute-force methods also generate immense vibration. This vibration risks micro-fracturing the surrounding structural concrete. Modern engineering demands precise, clean holes to maintain absolute structural integrity.
This comprehensive guide explains the exact mechanics behind diamond coring technology. You will discover how different metallurgical bonds interact with varying aggregate densities. We will outline a technical framework to help evaluate equipment capabilities. We will also explore crucial operational parameters required for success. By applying these specific principles, you can confidently select the perfect tool for any rigorous application.
Diamond core bits do not "cut" like traditional steel bits; they grind material away through high-speed abrasion.
Selecting the right concrete core bit requires matching the metallurgical bond matrix to the hardness of the aggregate and the presence of steel reinforcement.
Operating parameters—specifically rotational speed (RPM) and feed pressure—must strictly align with bit diameter and material to prevent glazing or premature segment failure.
Evaluating cost-per-hole lifespan versus upfront bit cost is the primary success metric for procurement.
A diamond core drill bit does not slice through material like a standard wood drill. Instead, it relies entirely on the powerful principle of abrasion. Synthetic industrial diamonds sit firmly embedded within a specifically engineered metal matrix. These exposed diamond crystals spin at incredibly high speeds along the tool's leading edge. They systematically grind away hard aggregates. They turn dense rock and cement into microscopic dust particles.
The wear cycle ensures consistent cutting performance across the tool's lifespan. Manufacturers design the metal matrix, commonly called the bond, to wear away at a highly controlled rate. As the tool grinds into a surface, the outer diamonds naturally fracture and dull. Simultaneously, the surrounding matrix slowly erodes during operation. This deliberate, continuous erosion constantly exposes fresh, sharp diamond crystals hidden beneath the surface.

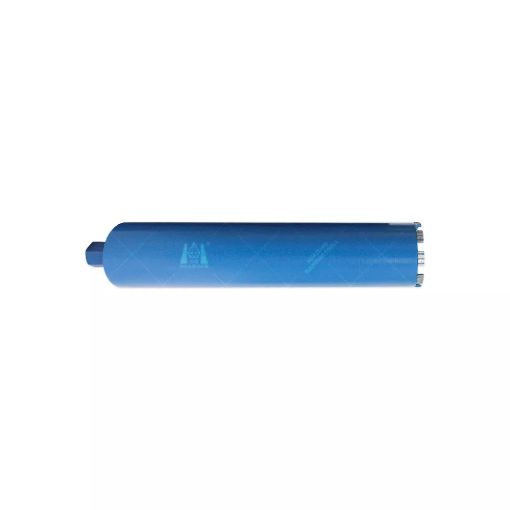

The tool features a specialized hollow cylindrical design known as the barrel. This brilliant shape allows it to remove only the hole's immediate outer perimeter. It leaves a solid core center completely intact. Once you reach your desired depth, you simply snap off and remove this solid core. This intelligent design minimizes mechanical energy expenditure. It significantly reduces the physical effort required to create massive diameter holes in tough environments.
The entire industry relies on a seemingly counter-intuitive core rule for tool selection. Hard materials strictly require a soft bond. Conversely, soft and abrasive materials demand a hard bond. Ignoring this foundational rule guarantees frustrating operational failure. You must thoroughly understand the material you plan to drill.
You need soft bond matrices for hard aggregate, aged concrete, and demanding high-PSI applications. Extremely hard materials dull the synthetic diamonds rapidly. Therefore, the metal bond must wear down quickly. This fast wear rate continuously pushes new, sharp diamonds to the cutting surface. It actively prevents the concrete core bit from glazing over. Without a soft bond, the tool simply bounces off hard rock like flint or river gravel.
Hard bond matrices work best for highly abrasive, softer materials. Prime examples include raw asphalt, green concrete, or soft red brick. These softer aggregates act exactly like aggressive sandpaper against the tool's edge. The tough matrix resists rapid, destructive erosion. It grips the valuable diamonds tightly. This grip maximizes the tool's overall functional lifespan while cutting porous substances.
Selecting a core bit for reinforced concrete presents incredibly unique mechanical challenges. You must cut through dense concrete aggregate and solid steel rebar simultaneously. This complex task requires heavily concentrated diamond segments. Manufacturers often utilize specific roof-top or turbo segment geometries to tackle these dual-density environments. The bond hardness must remain perfectly balanced. It must handle the abrasive nature of the concrete while powering through the tough steel reinforcement without stalling.
Professionals generally divide coring tools into two distinct operational categories. You must choose between wet and dry systems based on your specific job site constraints.
Wet coring systems utilize a continuous, controlled water flow. The water travels directly down through the center of the hollow steel barrel.
Mechanism: The flowing water flushes away abrasive slurry instantly. It simultaneously cools the intensely hot diamond segments.
Best for: Heavy-duty tasks like deep foundation drilling and heavily reinforced concrete walls. They consistently maximize the tool's lifespan.
Compliance: Wet drilling naturally suppresses dangerous airborne silica dust at the source. This naturally aligns with strict OSHA safety regulations regarding breathable particulates.
Dry systems rely entirely on ambient airflow for crucial cooling. Manufacturers often use advanced laser welding to secure the segments safely.
Mechanism: Specialized segment welding and continuous airflow manage the intense friction generated during drilling.
Best for: Softer masonry, brick, cinder block, and finished indoor environments. They shine where accidental water damage poses a serious liability.
Limitations: You should generally avoid them for heavy reinforced concrete. The extreme thermal buildup causes rapid, catastrophic segment loss.
Feature Category | Wet Coring Technology | Dry Coring Technology |
|---|---|---|
Cooling Method | Continuous water flow through the barrel | Ambient airflow and atmospheric dissipation |
Dust Control | Excellent (binds dust into a heavy liquid slurry) | Requires external industrial vacuum attachments |
Primary Material | Reinforced concrete, hard stone, dense aggregate | Soft brick, standard masonry, porous block |
Heat Tolerance | Low (relies heavily on constant water presence) | High (features rugged laser-welded segments) |
Before finalizing any equipment procurement, evaluate these critical technical criteria. Your choices directly impact operational success and team efficiency.
The exact way a manufacturer attaches the cutting segments dictates the tool's maximum thermal limits.
Laser Welding: This superior method creates a permanent structural fusion between the segment and the steel barrel. It proves mandatory for dry cutting and heavy-duty applications. The incredibly strong bond actively prevents segment drop under extreme heat.
Silver Brazing: This remains the standard, reliable process for wet cutting tools. It offers a highly effective, economical solution. However, silver-brazed segments become incredibly susceptible to instant failure if you overheat them without adequate water.
You must carefully evaluate the physical shape of the cutting segments. Flat segments provide consistent, smooth grinding across uniform surfaces. Turbo segments feature a uniquely serrated edge. This aggressive design promotes faster cutting and much better slurry evacuation. Pointed segments, often called roof-top or A-shape designs, allow for faster seating. They help the tool track perfectly straight during the initial critical cut.
Ensure your chosen tool strictly matches your existing drill motors. Large rig-mounted motors typically utilize a robust 1-1/4"-7 thread standard. Conversely, smaller hand-held grinders usually require a standard 5/8"-11 thread connection. A mismatched hub forces you to rely on external adapters. These adapters often introduce unwanted, destructive vibration into the delicate drilling process.
Shift your operational focus toward long-term performance consistency. High-tier tools utilize premium synthetic diamonds and advanced metallurgy. They offer significantly longer functional lifespans. This extended durability translates directly into less operator downtime. It guarantees faster project completion rates. Evaluating long-term reliability ensures you avoid frustrating mid-project tool failures.
Even premium tools fail if operators ignore basic physical principles. Watch out for these common implementation risks during daily operation.
Glazing occurs when the metallurgical bond is simply too hard for the specific material. It also happens frequently if the rotational RPM is too high. The exposed diamonds dull rapidly. The tough metal matrix refuses to wear away. Consequently, the tool simply stops cutting. It uselessly rubs against the concrete surface, generating massive friction and heat.
This frustrating failure typically stems from inadequate water flow. Without enough water, the concrete dust forms a thick, highly abrasive paste. This dense slurry aggressively wears the steel barrel thin. Premature wear also happens when you mistakenly use a soft-bond tool on highly abrasive materials like raw asphalt.
Losing a cutting segment abruptly halts your progress. This catastrophic failure often results from hitting loose, vibrating steel rebar unexpectedly. It can also occur if an operator applies excessive feed pressure. Physically forcing the tool into the cut breaks the segment welds. Severe overheating from insufficient cooling will also melt brazed segments right off the barrel.
Running large diameter tools at excessively high speeds generates extreme friction heat. This mistake causes immediate glazing and potential structural failure. Conversely, running small diameter tools at incredibly low speeds creates extreme inefficiency. The tool ends up merely polishing the aggregate rather than aggressively grinding it. Always consult manufacturer charts to match the motor speed to the specific barrel diameter.
Choosing the correct equipment ensures precise, highly efficient drilling. Begin by accurately identifying the exact aggregate hardness of your target surface. Determine carefully whether heavy steel rebar sits hidden beneath the concrete. Choose between wet and dry systems based on your environmental constraints and indoor safety requirements. Finally, select the corresponding bond matrix to maintain a continuous, aggressive grind.
Remember that proper operator technique proves just as critical as the tool's underlying engineering. Managing your feed pressure strictly prevents unnecessary equipment strain. Monitoring water volume constantly keeps temperatures stable. It effectively flushes abrasive slurry away from the delicate cutting zone.
Review the specific material specifications for your upcoming project carefully. Cross-reference your current motor RPM capabilities before finalizing any new equipment procurement. Ensure every component aligns perfectly to achieve maximum operational success.
A: Lifespan varies wildly based on material abrasiveness, rebar density, wet versus dry operation, and overall operator skill. Professionals measure lifespan in linear feet or inches drilled rather than hours used. A premium tool might drill anywhere from 40 to over 100 feet in standard concrete under optimal conditions.
A: Absolutely not. Manufacturers use silver brazing to attach the segments on wet tools. This brazing melts rapidly under the extreme thermal stress of dry friction. The segments will quickly detach from the steel barrel, causing immediate tool failure and presenting a severe physical danger to the operator.
A: Your tool has likely glazed over. You must "dress" the edge to restore performance. Simply drill into an abrasive material, like a dedicated dressing block or a standard cinder block, for several minutes. This highly abrasive action strips away the hardened metal matrix, exposing fresh synthetic diamonds.
A: Yes, many high-quality tools feature thick, durable steel barrels capable of being re-tipped. Technicians can braze brand new diamond segments onto your existing barrel once the original segments wear down. This practice significantly reduces replacement expenditures, especially for large-diameter tools used in heavy industrial applications.
